Sizes	20	25	30	35	50

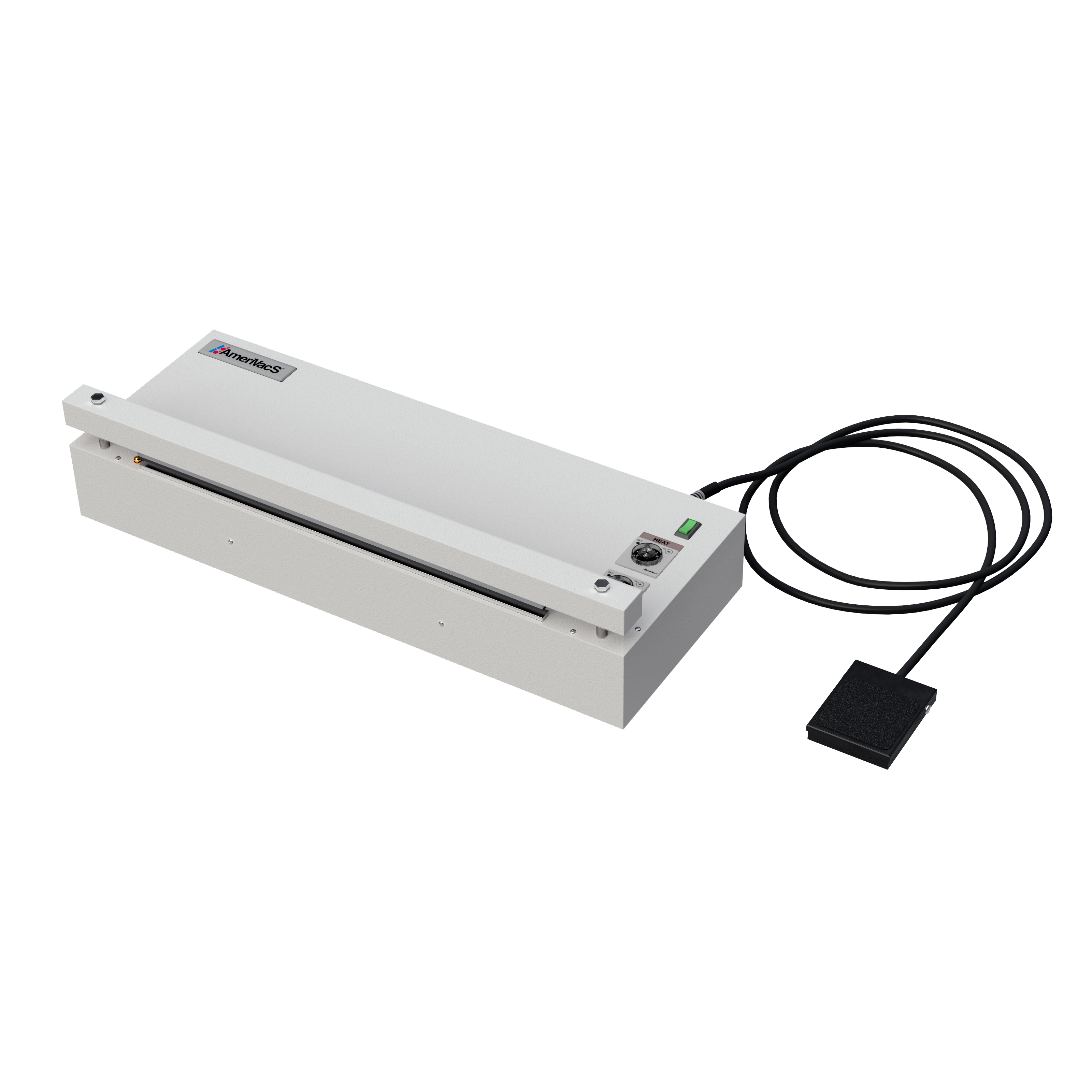

AVP (Pneumatic Impulse Sealers)		(Need AVS functionality in a 25-50” model? Consider using AVN 25-50” below with gas purge dial set to zero.)
AVS (Retractable Nozzle Vacuum Sealer)
AVN (Retractable Nozzle Vacuum Sealer with Gas Purge)
CAVS (Retractable Nozzle Vacuum Sealer l Built-in-Compressor Model)
CAVN (Retractable Nozzle Vacuum Sealer with Gas Purge I Built-in-Compressor Model)
AVC (Chamber Vacuum Sealer)
AVCG (Chamber Vacuum Sealer with Gas Purge)
*Unless otherwise noted, all models require an external air compressor to function

Models

AVP-Series

$0 USD

Total:

Handling, Warranty, & Trial Info:

Upgrade/Accessory Modifications | Lead Times:

Air Compressor Requirements

Total:

Handling, Warranty, & Trial Info:

Upgrade/Accessory Modifications | Lead Times:

Air Compressor Requirements:

Add Quantity:

	AVN	AVS	CAVS / CAVN	AVC / AVCG	AVP
Chamber Size (in)	N/A	N/A	N/A	22x22x4	N/A
Seal Length (in)	20, 25, 30, 35, 50	20	20, 30	20	20, 25, 30, 35, 50
Seal width (in)	1/4	1/4	1/4	1/4	1/4
Vacuum Flow (CFM)	6	6	3	18	N/A
Max Vacuum Pressure (inHg)	27	27	27v	28.5	N/A
Air Requirements (CFM)	6	6	N/A	18	1
Amps @120 Volts A.C.*	8, 9, 13, 15, 15	8	10, 15	8	8, 9, 13, 15, 15
Unit Size (in)*	28, 33, 40, 45, 60) L x 10W x 7H	28L x 10W X 7H	28L x 10W X 7H	29L X 24W X 12H	(28, 33, 40, 45, 60) L x 10W x 7H
Unit Weight (lbs)*	35, 41, 55, 62, 100	34	57, 75	92	35, 41, 55, 62, 100
Max Temperature**	500F	500F	500F	500F	500F
Ship Weight (lbs)*	40, 47, 62, 72, 111	39	65, 85	108	34, 41, 56, 69, 89
Ship Dims (in)*	(37, 41, 47, 53, 67) L x 18W X 16H	37L X 18W X 16H	(35, 47)L x 18W X 20H	35 x 31 x 17	(37, 41, 47, 53, 67) L x 18W X 16H
	Values may vary. Accesories and Upgrades will change values.		* By Seal length respectively		** Can be higher
